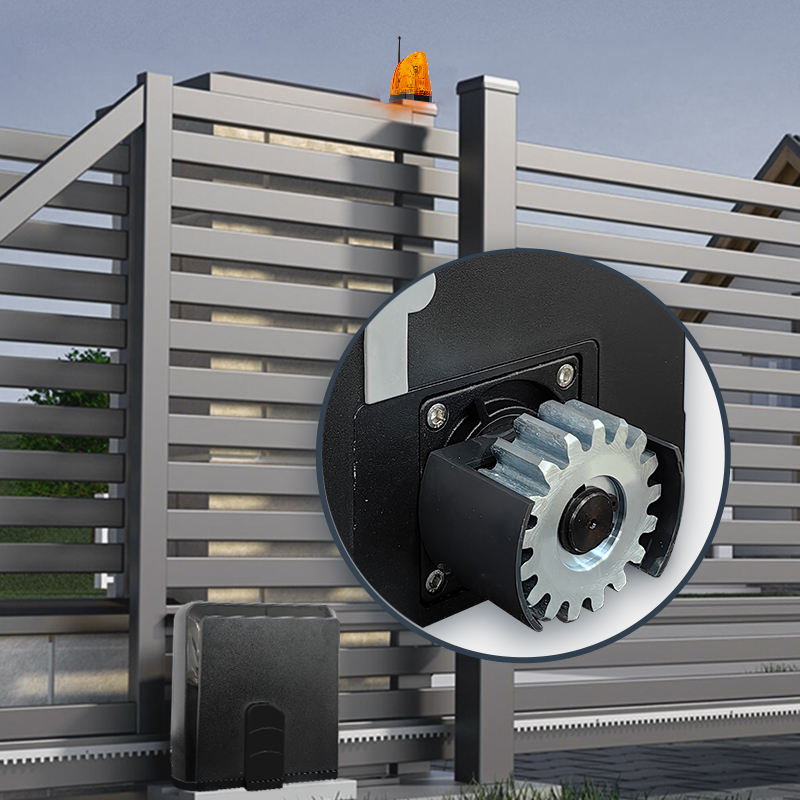

High Speed 250W BLDC Motor Sliding Gate Operator
Professional Installation Guidelines
The GA800DC/GA1000DC Sliding Gate Automation Kit is engineered to power gates weighing up to 800kg (GA800DC) or 1000kg (GA1000DC), with maximum gate lengths of 8 meters.
Gate movement is achieved through the rotating output gear of the gate opener driving a gear rack (sold separately) attached to the moving gate.
Operation requires a single press of the remote control to open, and another to close - a safety feature ensuring secure operation.
The opener must be installed within private property boundaries, never externally to the property perimeter.
Important Safety Notice: All maintenance and modifications must be performed with power disconnected. Any work on AC power components requires a licensed electrician.
Required Installation Tools
- Tape measure
- Level
- 12mm concrete drill and hammer (for expansion screws)
- Phillips head screwdriver
- Straight screwdriver
Advanced Product Features
- Soft start and slow stop operation
- Automatic reverse when encountering obstacles
- Adjustable motor output force, stall force, and slow stop distance
- Automatic close with adjustable waiting time
- Partial opening function for pedestrian access
Technical Specifications
| Specification |
GA800DC |
GA1000DC |
| Power Supply |
110VAC/60Hz; 220VAC/50Hz; DC24V |
| Motor Power |
200W |
250W |
| Gate Moving Speed |
18m/min |
24m/min |
| Maximum Loading Weight |
800kg |
1000kg |
| Remote Control Distance |
≥30m |
| Remote Control Mode |
Single button mode / Three button mode |
| Limit Switch |
Spring/Magnetic limit switch |
| Working Duty |
S2, 20min |
| Frequency |
433.92MHz |
| Working Noise |
≤56dB |
| Working Temperature |
-20℃~+70℃ |
| Overall Dimensions |
293x247x300mm |
| Package Weight |
12.6kg |
13kg |
Standard Unit Components
- Gate Motor
- Control board & box
- 2 remote controls
- 12V/2.5Ah lithium battery
- Mounting plate
- Manual release key
- User manual
- Bolts & nuts
Optional Accessories
- Metal or Nylon Gear Rack (order according to gate length)
- Photo beam sensor
- Keypad systems
- Push button
- Warning light
- Solar panel
- Backup batteries
- Additional remote controls (requires pairing)
- Infrared photocell for obstacle detection
- Wireless keypad for secure code access
- Wired control for external push-button operation
- Alarm lamp for operational alerts
